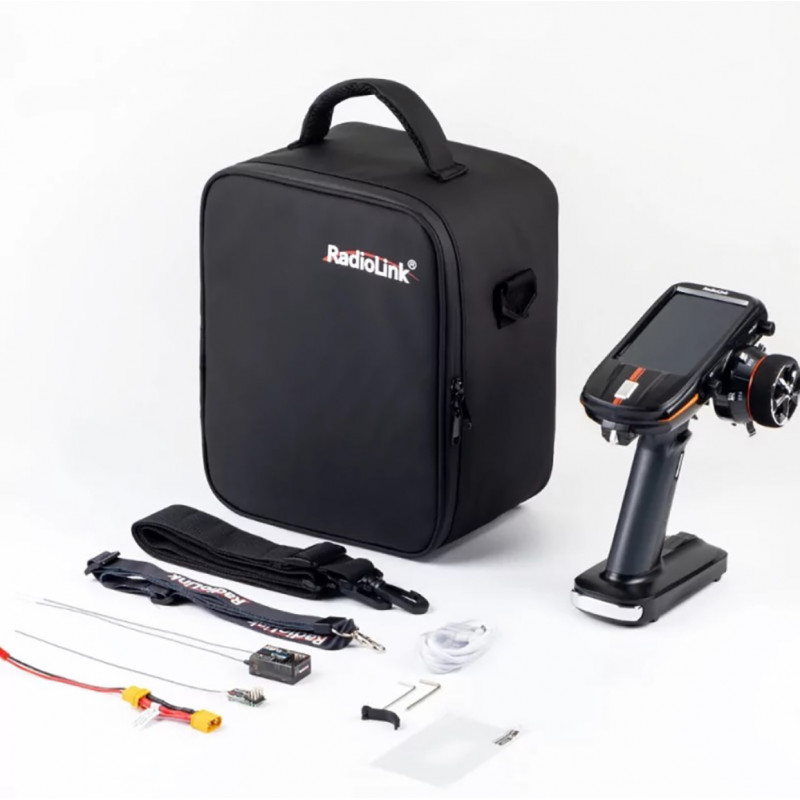

RADIOLINK RADIOLINK RC8X 8 Channels with 2 Receivers RL-RC8X

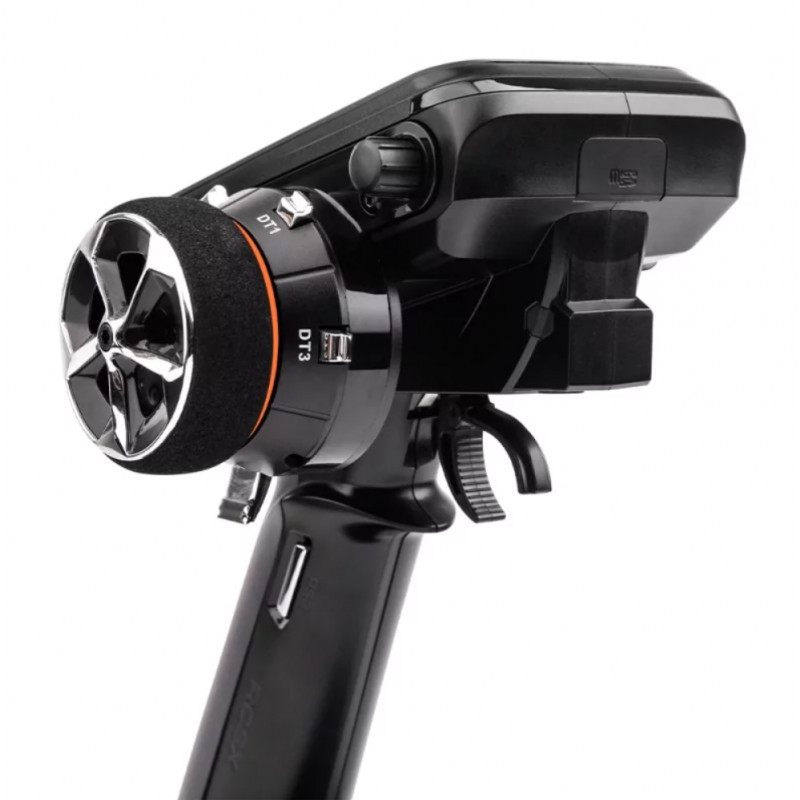

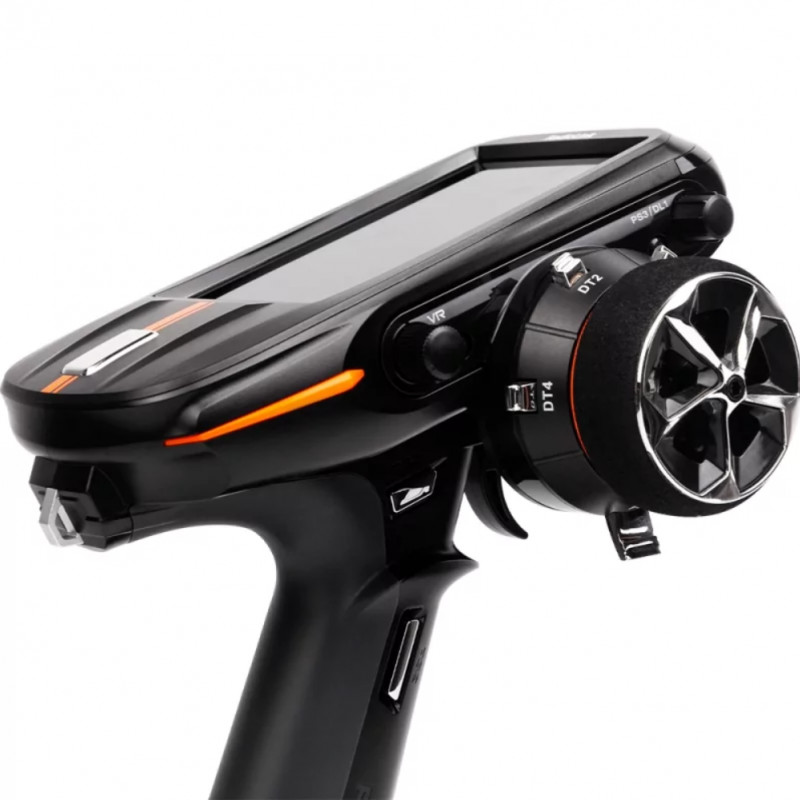

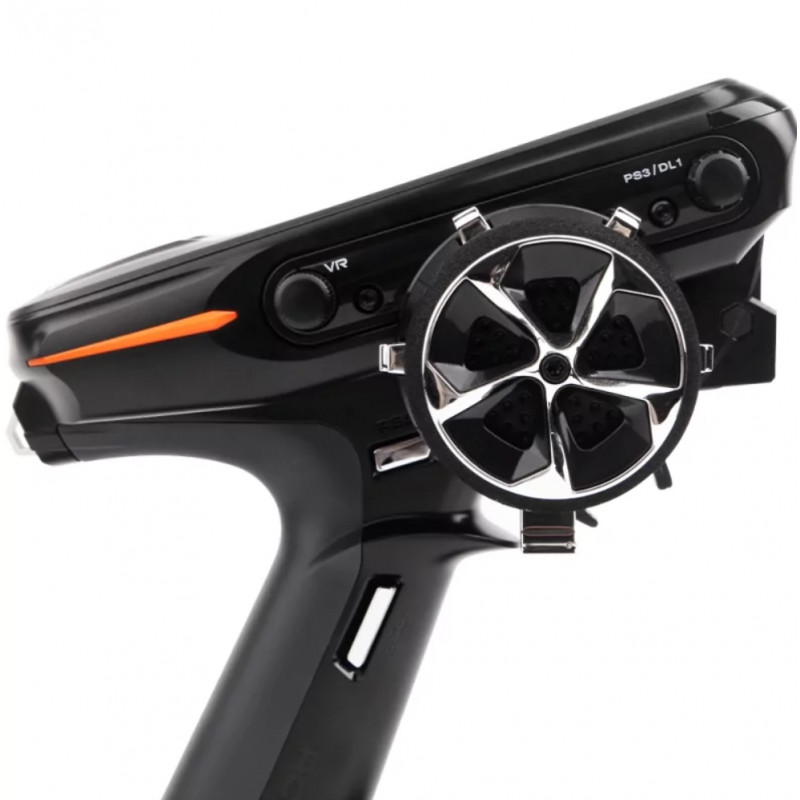

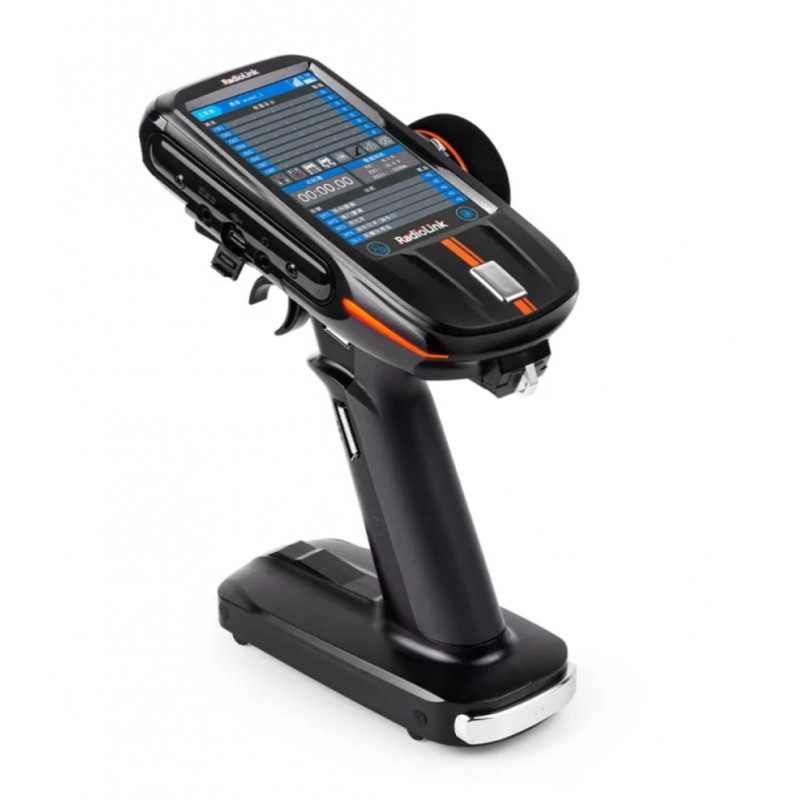

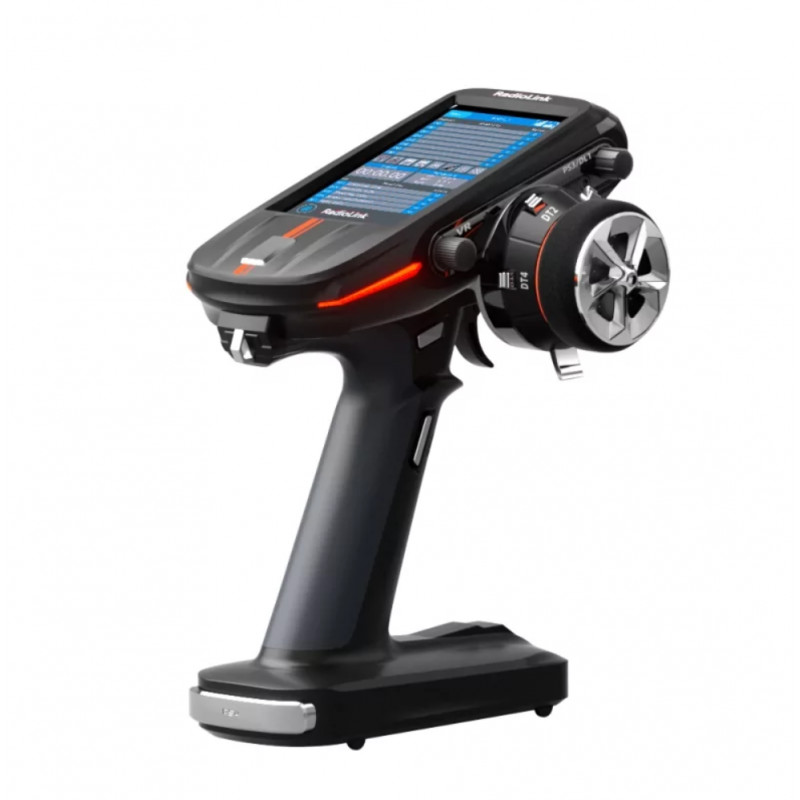

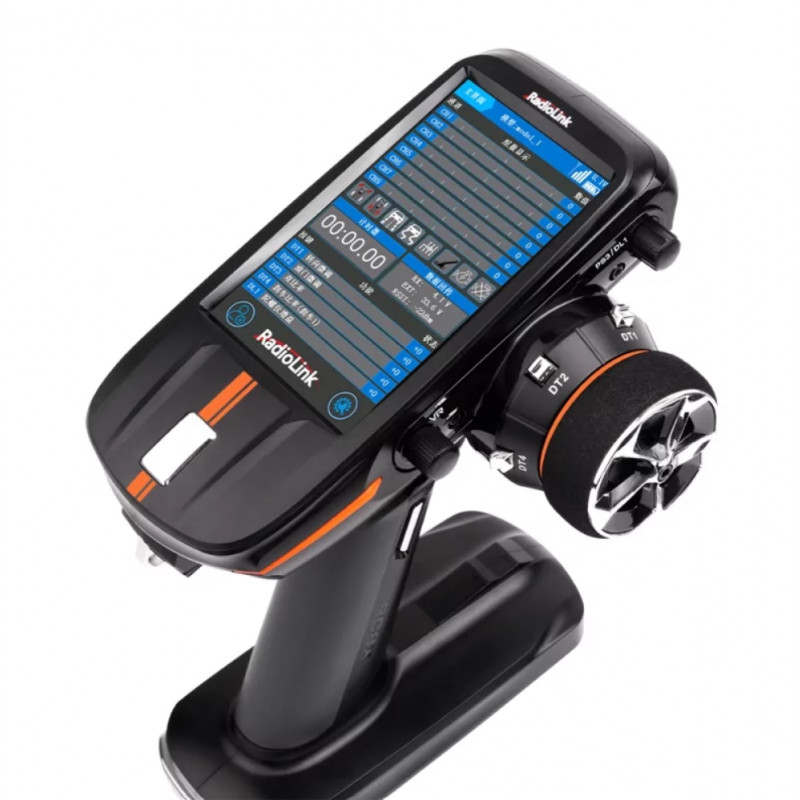

RC8X TRANSMITTER
Dimensions L*W*H: 121*163*109mm(4.76"*6.42"*4.29")
Weight 438.5g(15.47oz)
Channels 8 Channels

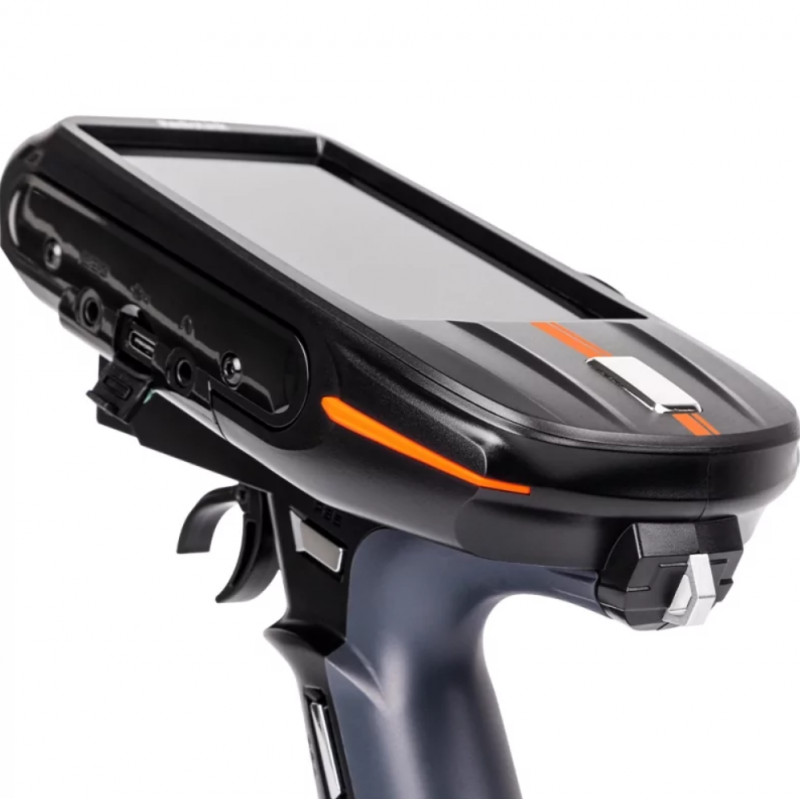

4.3" backlit color LCD touchscreen
600 meters (1968.5 feet) (maximum range tested in clear, interference-free
interference-free areas)
Operating current 250 mA ± 10 mA at 8.4 V (LCD display lights up); 190 mA ± 10 mA at
8.4 V (LCD display off)
Operating voltage 7~17V DC (8 AAA batteries or one 2S-4S LiPo battery or one 6S Ni-MH battery)
Built-in antenna
Frequency band 2.4GHz ISM band (2400MHz-2483.5MHz)
Modulation GFSK mode
Transmitter power <20dbm
FHSS spectrum, pseudo-random frequency hopping to 67 channels
4096 channel resolution with regular jitter of 0.5 us
Low-voltage alarm
Transmitter, receiver and battery voltage alarm can be customized

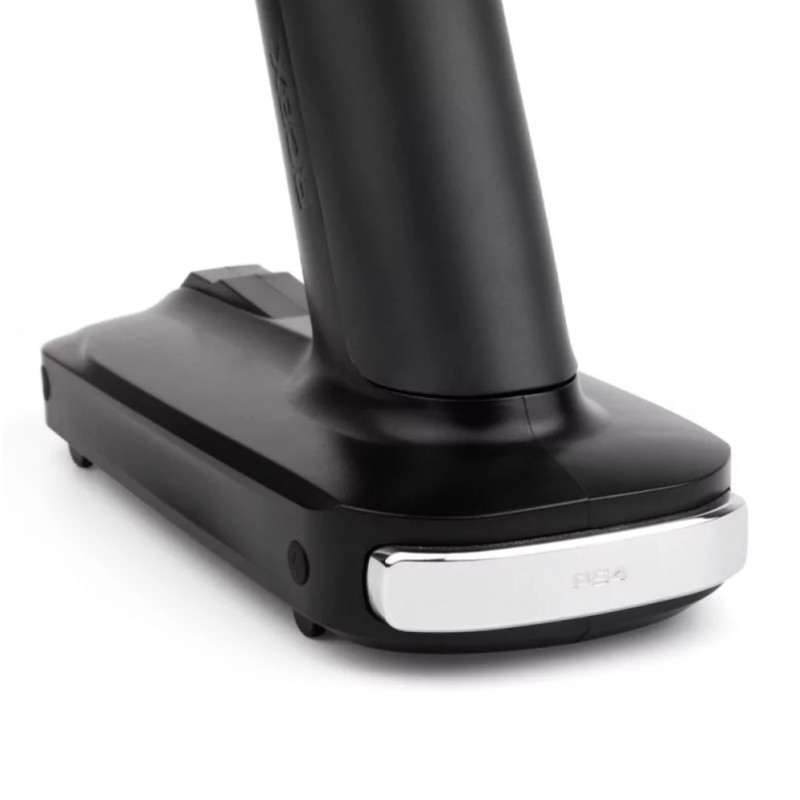

Battery case dimensions L*W*H =92*52*14.5mm(3.62"*2.05"*0.57")
Model memory 200 models
Compatible receivers
R8FG(Standard), R7FG, R6FG, R6F, R8EF, R8F, R8FM, R8SM,
R8XM, R4F, R4FGM
Voice broadcasting Yes

SPECIFICATIONS

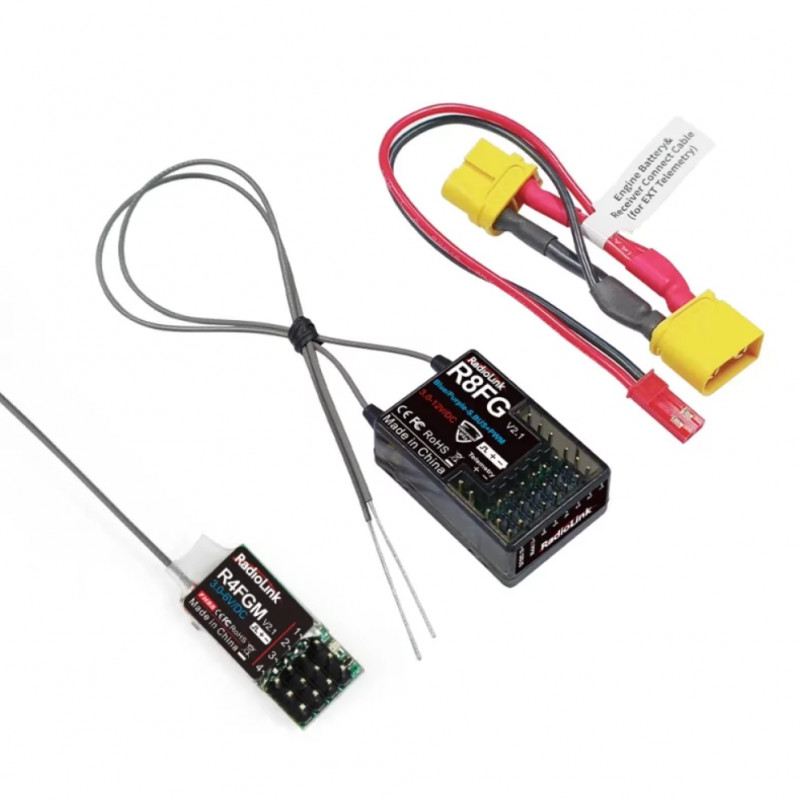

R8FG receiver
Dimensions L*W*H =35*24*13.5mm (1.38"*0.94"*0.53")
Weight 10.5g(0.37oz)
Channels 8 Channels
Control distance Ground 600 meters (1968.5 feet) (maximum range tested in clear
interference-free areas)
Operating
Current 30mA
Operating voltage 3-12V
Signal output SBUS&PPM&PWM
Telemetry
Integrated real-time telemetry of model battery voltage, RSSI and receiver voltage
Splash water resistant (IPX4 waterproof rating)
Gyro
Receiver with integrated gyroscope, customizable gyro sensitivity
Compatible transmitters
RC8X, RC6GS V3, RC6GS V2, RC6GS, RC4GS V3, RC4GS V2,
RC4GS, T8FB, T8S
