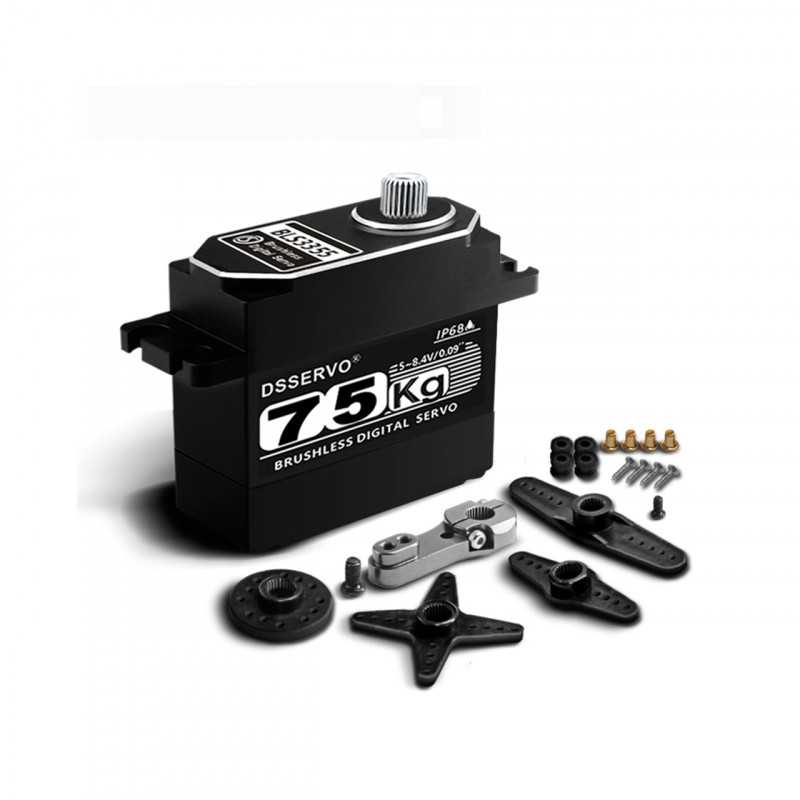

DSSERVO BLS3375 Brushless Metal 82KG/0.11sec@8.4V DS019
DS019
New product
Availability: Disponible
Warning: Last items in stock!
By buying this product you can collect up to 48 loyalty points. Your cart will total 48 loyalty points that can be converted into a voucher of 1,20 €.
More info
Features:
- Extremely powerful - up to 82 kg·cm at 0.11 sec/60°

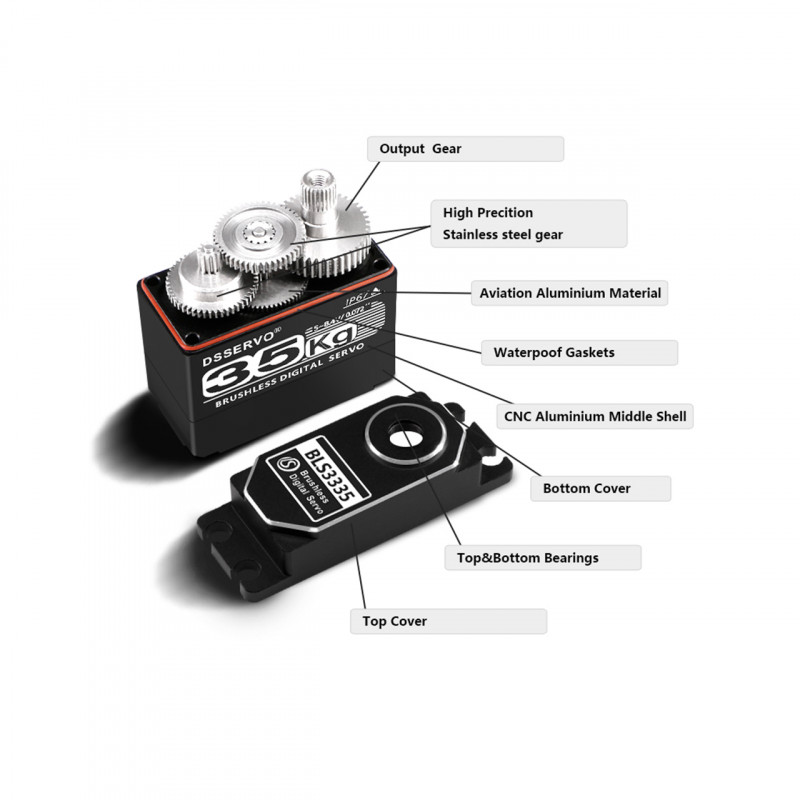

- Brushless motor in a rugged all-metal housing
- Extended case height (40.5 mm) for maximum output
- IP67-certified - water- and dustproof
- Dual ball bearings for smooth movement
- 270° control angle possible (PWM-controlled)
- Suitable for operation up to 8.4 V
Technical Specifications:
| Voltage: | 4.8 V | 6.0 V | 7.4 V | 8.4 V |
| Speed: | 0.17 sec/60° | 0.14 sec/60° | 0.12 sec/60° | 0.11 sec/60° |
| Stall Torque: | 53 kg·cm | 63 kg·cm | 75 kg·cm | 82 kg·cm |
| Motor: | Brushless | |||
| Gear Ratio: | 366 | |||
| Type: | Digital (PWM) | |||
| Control Frequency: | 50330 Hz | |||
| Bearings: | Dual | |||
| Dimensions: | 40 × 20 × 40.5 mm | |||
| Weight: | 85.0 g | |||
| Rotation Range: | 180° or 270° (5002500 µs) | |||
| Waterproof: | IP67 | |||
