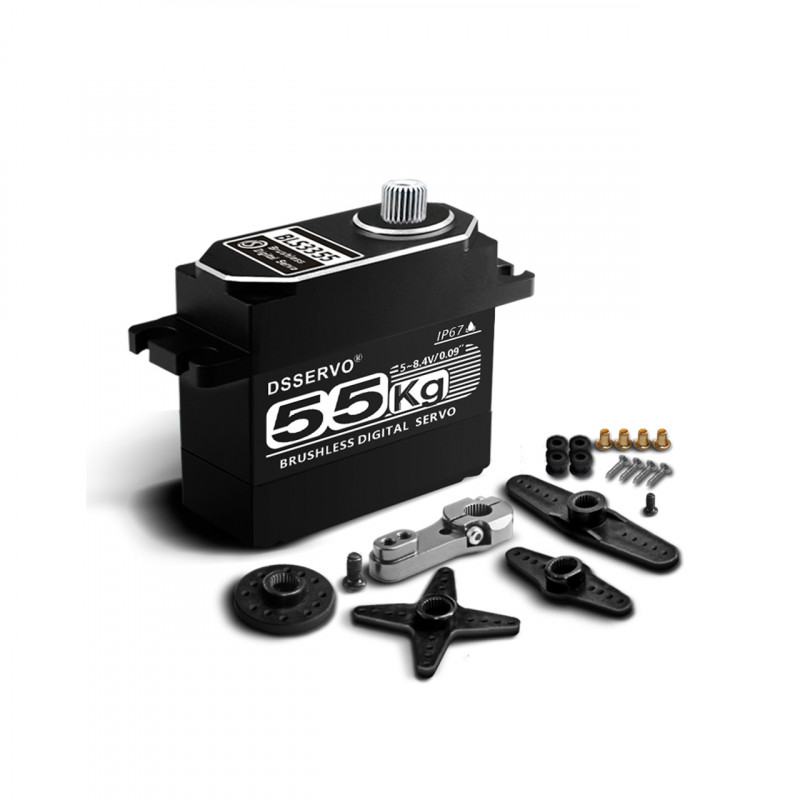

DSSERVO BLS3355 Brushless Metal 61KG/0.09sec@8.4V DS018
DS018
New product
Availability: Disponible
Warning: Last items in stock!
By buying this product you can collect up to 48 loyalty points. Your cart will total 48 loyalty points that can be converted into a voucher of 1,20 €.
More info
Features:
- Brushless motor for maximum durability
- Massive holding torque - up to 61 kg·cm at 0.09 sec/60°
- All-metal housing for the toughest conditions
- Dust- and waterproof to IP67 standard
- Optional 270° rotation angle
- Dual ball bearings & 2 µsec deadband for top precision
- PWM-compatible with 4.88.4 V operating range
Technical Specifications:
| Voltage: | 4.8 V | 6.0 V | 7.4 V | 8.4 V |
| Speed: | 0.14 sec/60° | 0.12 sec/60° | 0.10 sec/60° | 0.09 sec/60° |
| Stall Torque: | 39 kg·cm | 47 kg·cm | 55 kg·cm | 61 kg·cm |
| Motor: | Brushless | |||
| Gear Ratio: | 366 | |||
| Type: | Digital (PWM) | |||
| Control Frequency: | 50330 Hz | |||
| Bearings: | Dual | |||
| Dimensions: | 40 × 20 × 38 mm | |||
| Weight: | 85.0 g | |||
| Rotation Range: | 180° or 270° (5002500 µs) | |||
| Waterproof: | IP67 | |||
