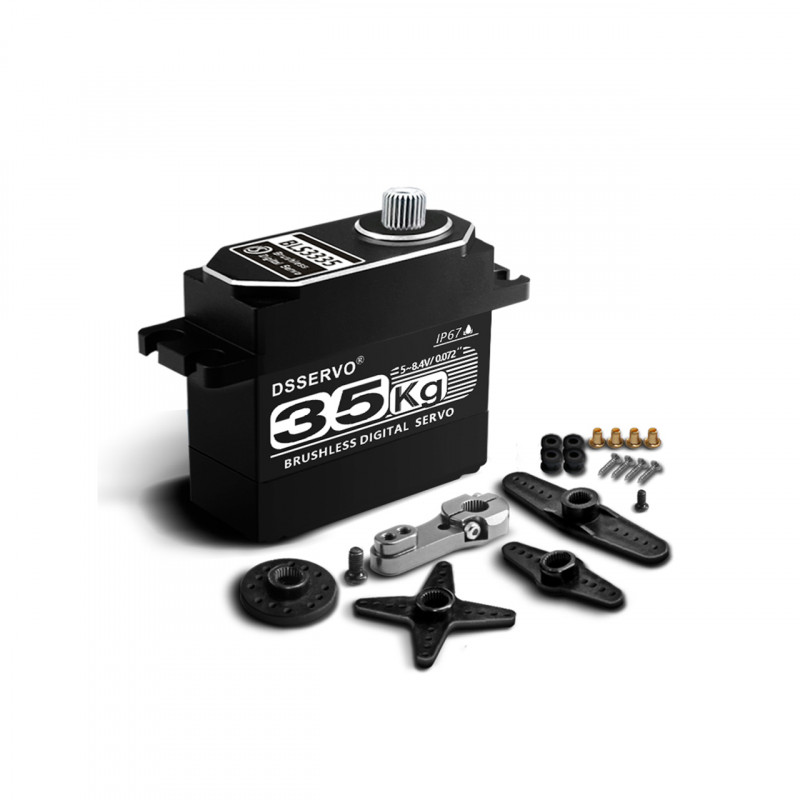

DSSERVO BLS3335 Brushless Metal 45KG/0.072sec@8.4V DS017
DS017
New product
Availability: Disponible
Warning: Last items in stock!
By buying this product you can collect up to 48 loyalty points. Your cart will total 48 loyalty points that can be converted into a voucher of 1,20 €.
More info
Features:

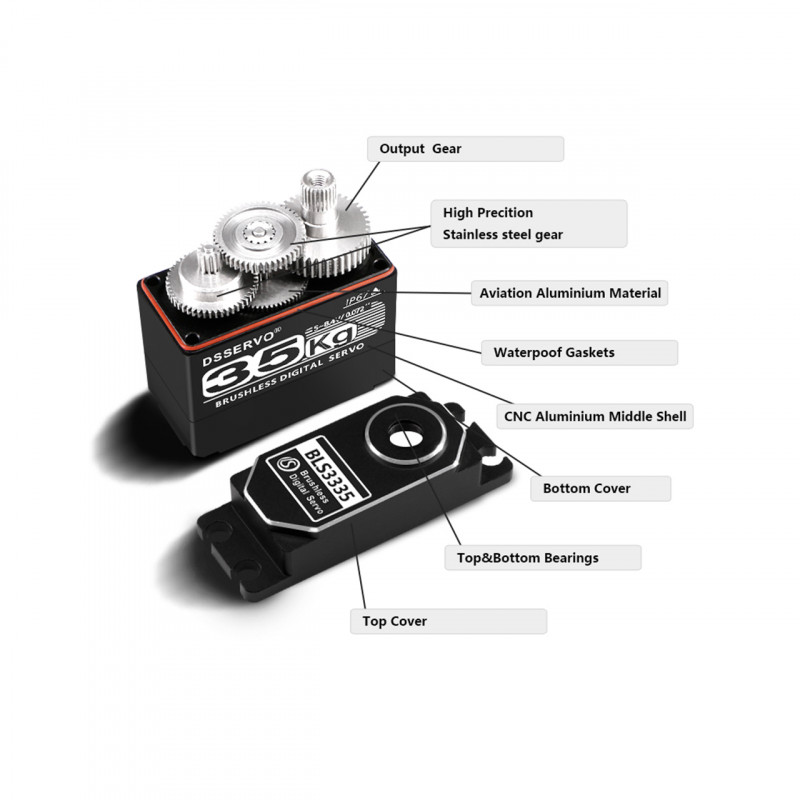

- Brushless motor in a full-metal housing
- High torque: up to 45 kg cm at 0.072 sec/60°
- IP67-certified - ideal for demanding environments
- High resolution with 2 µsec deadband
- Dual ball bearings for long-lasting performance
- Optional 270° rotation range
- PWM-compatible, operates from 4.8 V to 8.4 V
Technical Specifications:
| Voltage: | 4.8 V | 6.0 V | 7.4 V | 8.4 V |
| Speed: | 0.11 sec/60° | 0.095 sec/60° | 0.08 sec/60° | 0.072 sec/60° |
| Stall Torque: | 27 kg cm | 32 kg cm | 39 kg cm | 45 kg cm |
| Motor: | Brushless | |||
| Gear Ratio: | 275 | |||
| Type: | Digital (PWM) | |||
| Control Frequency: | 50330 Hz | |||
| Bearings: | Dual | |||
| Dimensions: | 40 × 20 × 38 mm | |||
| Weight: | 85 g | |||
| Rotation Range: | 180° or 270° (5002500 µs) | |||
| Waterproof: | IP67 | |||
