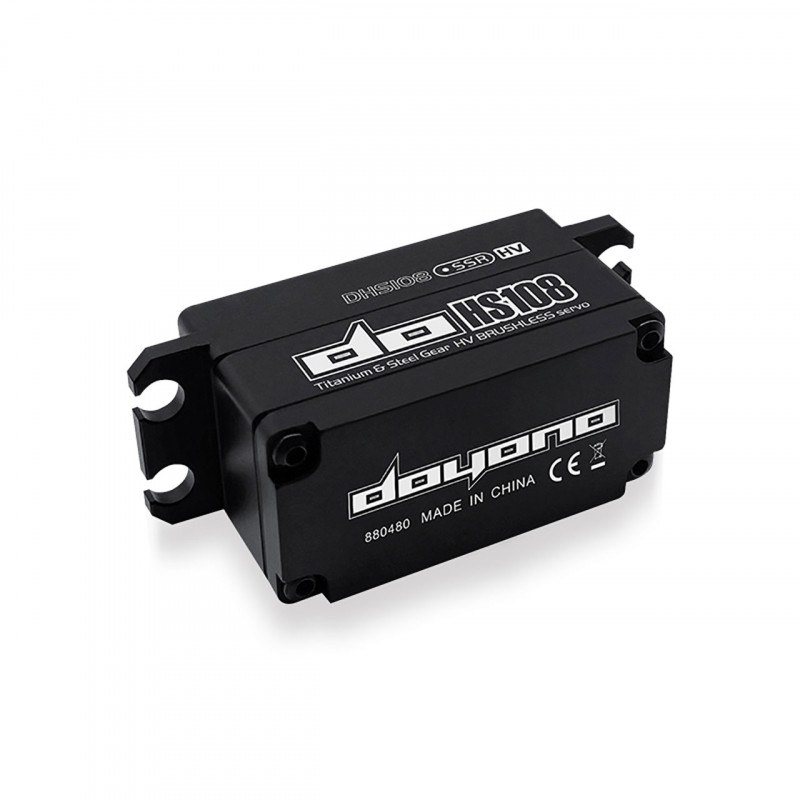

DOYONO Servo HS108BL HV 20Kg/0.055Sec DHS108

DHS108

New product

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 60kgcm for brushless motors has a titanium steel gear and a weatherproof aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.

More details

Availability: Disponible

By buying this product you can collect up to 86 loyalty points. Your cart will total 86 loyalty points that can be converted into a voucher of 2,15 €.


86,90 € tax incl.

More info

Features:

  • High Voltage Servo
  • Gears made of durable titanium and steel
  • Lightweight aluminum housing
  • Very weather resistant
  • Operating Voltage: 6.0-8.4V
  • 2µs dead band, 1520µs neutral point
  • 180mm connection wire length

Technical Specifications:

Voltage: 6.0V 8.4V
Speed: 0.077sec 0.055sec
Torque: 14.0kgcm 20.0kgcm
Motor: Brushless
Gear: Titanium / Steel
Bearing: yes, dual
Max. Travel: ~130° (bei 800: 2200µs)
Quiescent Current: 40mA @6.0V
Rated Current: 0.2A @6.0V
Blocking Current: 2.6A @6.0V
Dimensions: 41x20x26.3mm
Weight: 55.0g
Output Gear: 25T
