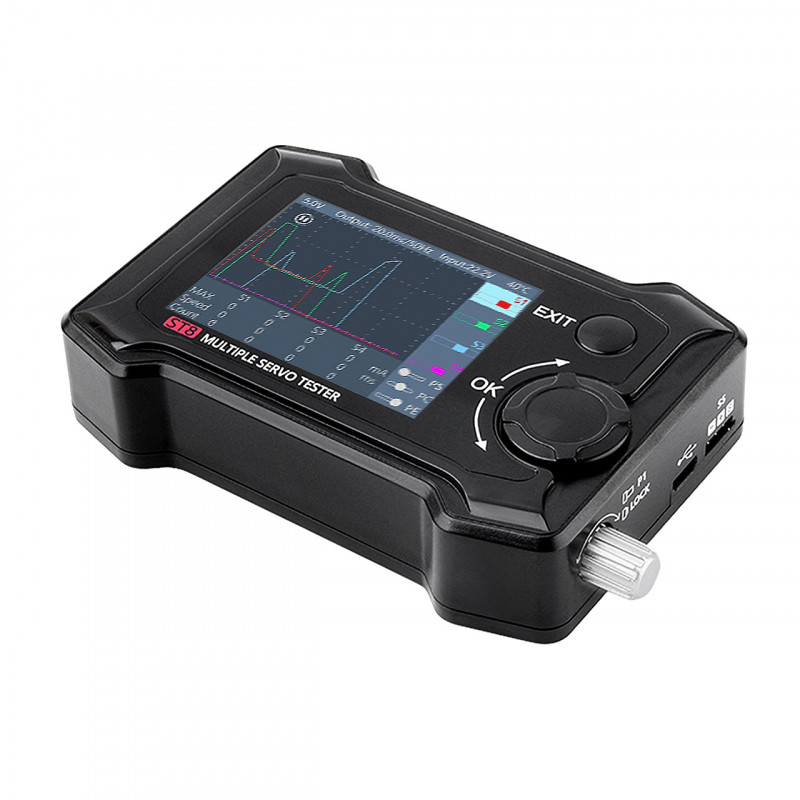

TOOLKIT RC ST8 Advanced Servo Tester TK30500
TK30500
New product
The ST8 Servo Tester visually displays the performance data of servos. It is a true multifunction device with up to 28V output voltage, 8-channel signal output, integrated current measurement, data display as a graph, and many other functions.
Availability: Disponible
Warning: Last items in stock!
By buying this product you can collect up to 63 loyalty points. Your cart will total 63 loyalty points that can be converted into a voucher of 1,58 €.
More info
- 4 channels for programmable independent signals
- 8 channels as signal outputs
- A variety of measurement modes (speed, count, steps, linear)
- External input signal support for PWM, PPM, and SBUS signals
- Measurement accuracy down to the millisecond.
Technical Specifications:
| Input Voltage: | 7.0-28.0V, max. 10A |
| Main Output Port: | 5.0-28.0V, max. 10A |
| Signal Port: | 5.0V-8.4V, max. 4A/S1-S4 |
| Output Voltage: | 5.0V-8.4V, max. 4A/S4 Ext. |
| Output Signal: | 100us-2900us, 33-1000Hz, S1-S4 PWM 500us-2500us, S5 PPM 8CH, S5 SBUS 16CH, S5 |
| P1 Rotation Range: | 1000us-2000us, P1 |
| Micro-USB: | Upgrade, USB3.0 |
| Display: | LCD, 2.4'' TFT RGB 320x240px |
| Dimensions: | 99x68x26mm |
| Weight: | 120g |
Delivery:
1x ST8 Servo Tester
1x Micro-USB Cable
1x Manual
