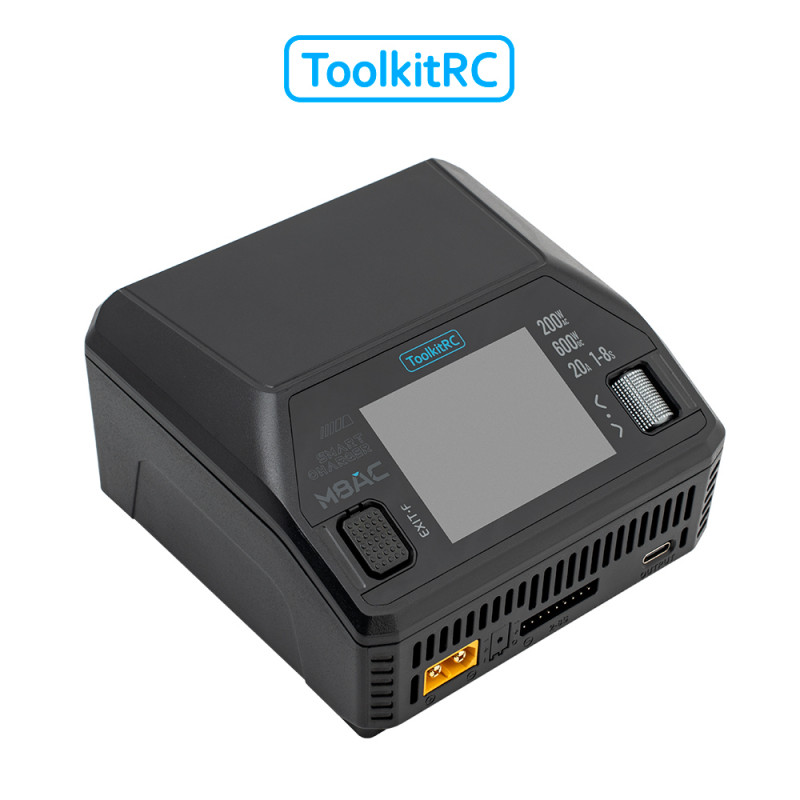

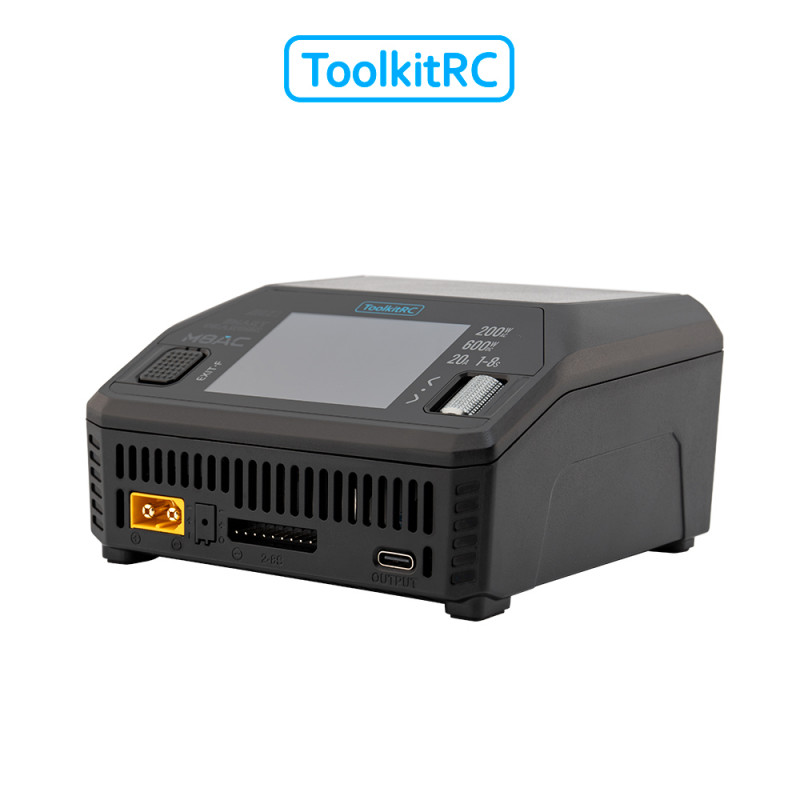

TOOLKIT RC M8AC LiPo 1-8S 20A Charger AC/DC Charger TK14000

TK14000

New product

The ToolkitRC M8AC is a powerful and compact AC/DC charger for up to 8S lithium batteries. With up to 200W via the integrated power supply (AC) or up to 600W at the DC input and a charging current of up to 20A, it charges batteries reliably and quickly. In addition, it offers a 65W USB-C fast charging function and numerous measuring and testing features.

More details

Availability: Disponible

Warning: Last items in stock!

By buying this product you can collect up to 108 loyalty points. Your cart will total 108 loyalty points that can be converted into a voucher of 2,70 €.


108,90 € tax incl.

More info

Features:

  • Up to 600W (DC) or 200W (AC) charging power
  • Max. 20A charging current
  • Wide battery support: LiPo/LiHV/LiFe/Li-Ion/LTO (18S), NiMH (120S), Pb (112S)
  • High balancing current (1,000 mA) and balancing accuracy < 0.005V
  • 2.4? IPS color display, easy-to-use interface
  • USB-C fast charging up to 65W (PD/QC etc.)
  • Destroy/discharge mode for safe battery decommissioning
  • Power supply/lab power supply function, servo/signal tester (PWM/PPM/SBUS)
  • Comprehensive protection features & temperature-controlled fan

Specifications:

Input voltage: AC 100240V @ max. 2.5A | DC 735V @ max. 25A
Charging power / current: AC up to 200W, DC up to 600W | 0.120A
Discharge (internal): 0.13A @ 20W (Normal mode)
Discharge (Recycle): 0.120A @ up to 600W (with external load)
Balancing current / accuracy: 1,000 mA @ 4.2V | < 0.005V
USB: USB-C up to 20.0V / 65W (PD/QC etc.), USB-A
Cell count: LiPo/LiHV/LiFe/Li-Ion/LTO 18S
Cell count: NiMH 120S
Cell count: Pb 112S
Display: 2.4? IPS LCD, 320×240 px

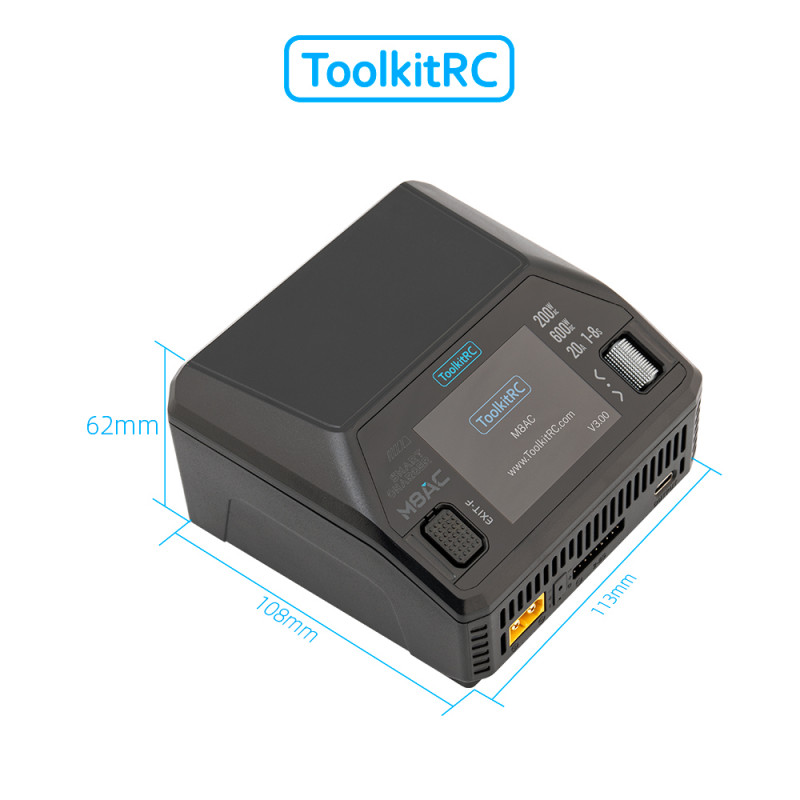

Dimensions: 108 × 113 × 62 mm
Weight: approx. 500 g

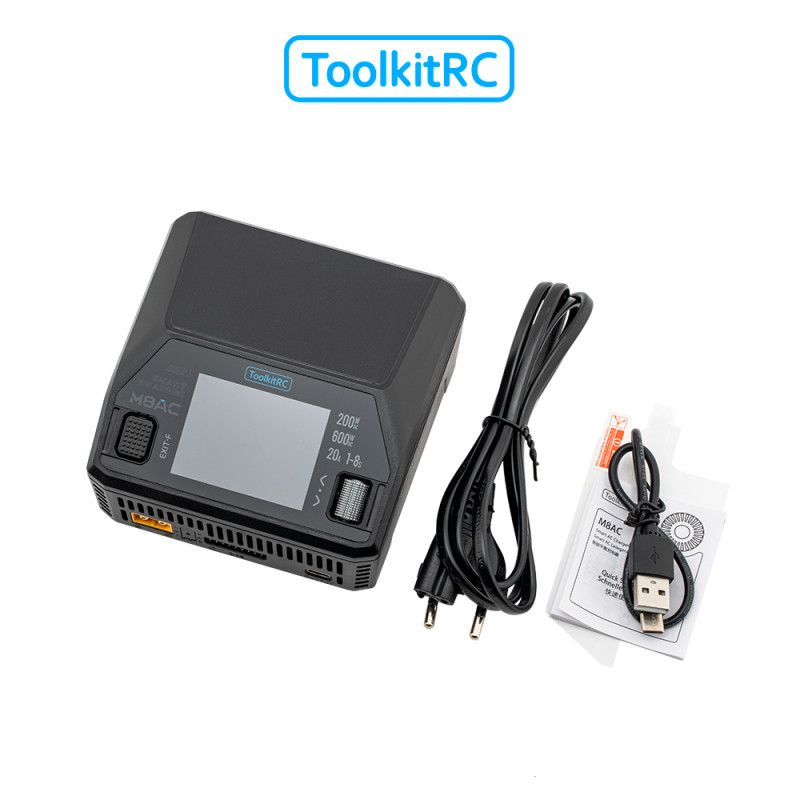

Scope of delivery:

  • 1× M8AC charger
  • 1× AC input cable
  • 1× USB cable
  • 1× Quick start guide
  • 1× Screen protector
