Caractéristiques moteur :
- 2 choix de puissances possibles 1900, 2100 kv .
- Moteur 4 Poles
- Max Voltage :
1850KV : <27V
2000KV : <25V
- Roulements de grands diamètres NMB (made in Japan) .
- Rotor équilibré
- Possibilité de fixer le moteur à l'aide de vis de 3 ou 4mm .
- Cage rainurée pour un meilleur refroidissement .
- 1 port sensor
- Réglage du Timing Moteur
- Diamètre de l'axe du rotor : 5mm
- Longueur de l'axe dispo : 18mm
- Longueur moteur : 68mm
- Diamètre moteur : 42mm
- Poids : 320grs
- Fournis avec un câble sensor plat de 15cm

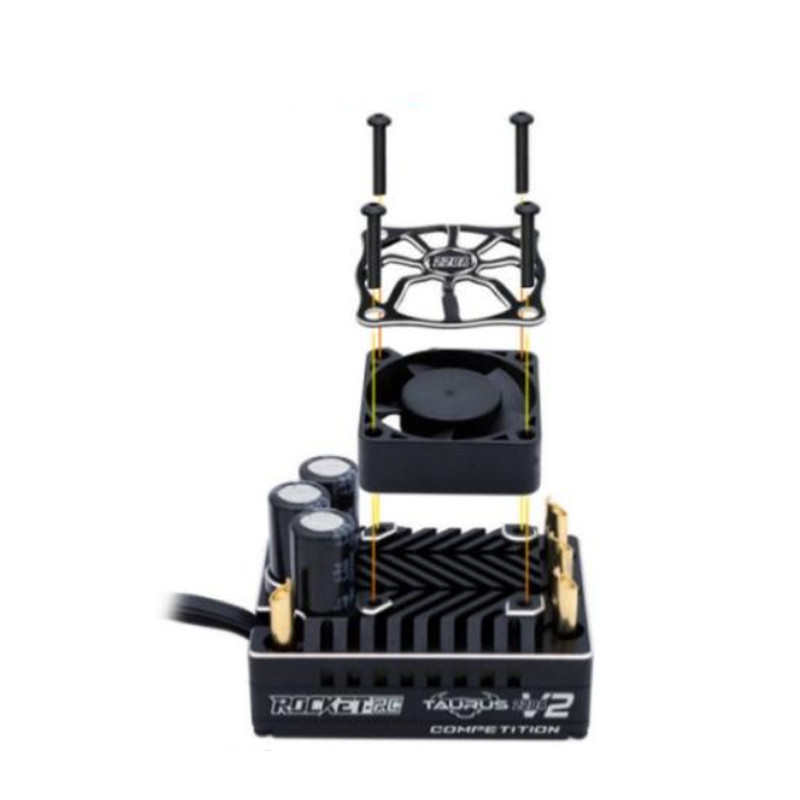

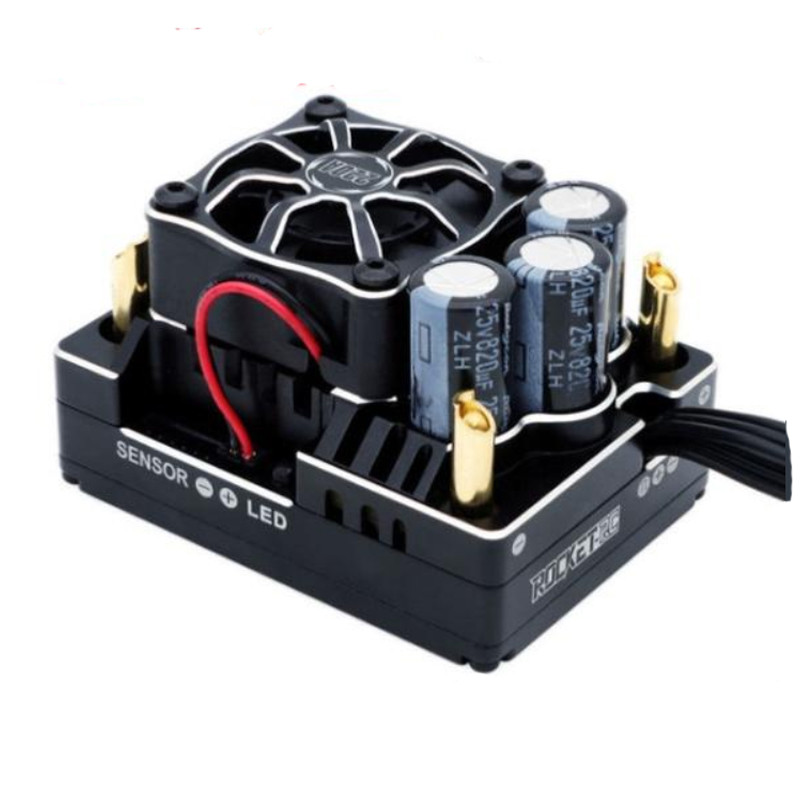

Features:
NEW! 32-bit processor supports more powerful processing capabilities and more precise motor output
Improved throttle response, excellent acceleration, linearity and driveability.
Newly designed software with improved throttle response, excellent acceleration, linearity and driveability
Throttle curve and punch rate adjustment
Dynamic boost synchronization and turbo timing adjustment
Braking curve and braking rate adjustment
Real-time data recording
Multiple protection functions: low-voltage cut-off protection, overheating protection and protection against loss of throttle signal.
Integrated Bluetooth for parameter programming and firmware upgrades via cell phone application
(Download the ESC1 app in the Apple iOS App Store) Please note that there is also an app for Android users, there's a trick to downloading it; Under Security & Privacy, Install unknown apps:"(Enable)"
Car application: 1/8 On-Road, 1/8 Off-Road Buggy/Truggy Racing
Housing:aluminum housing, heatsink design
Voltage input 2-4s Lipo
Continuous current: 220 A
Burst current: 1000 A
BEC output: 6A (BEC switch) 6 V/7.2 V
Weight: 155g
Multiple protection system
Dimensions (LxWxH): 55.2Lx40.2Lx36.5H
Waterproof: NO!
